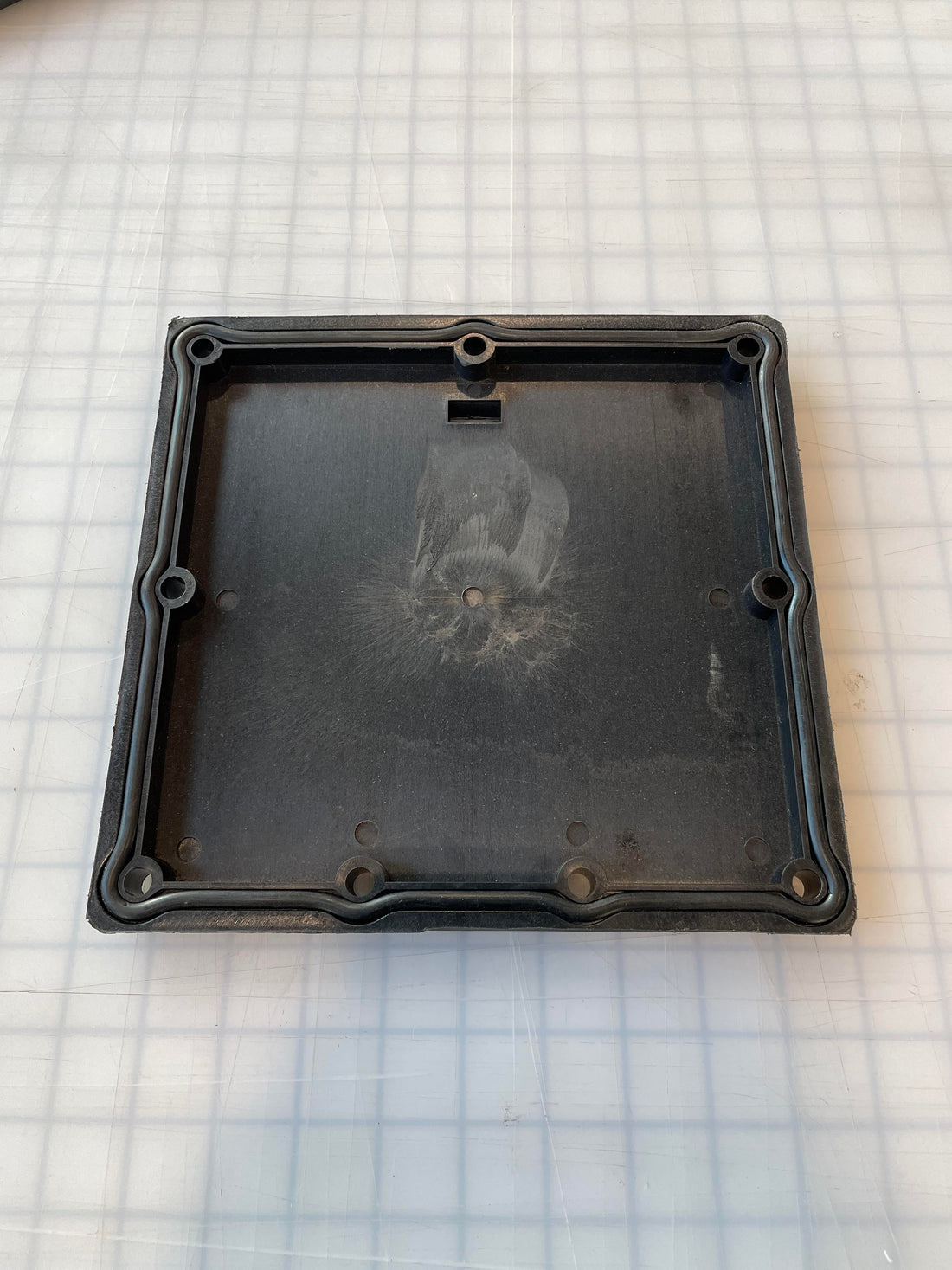

Hammerhead Swing Arm Oil Reservoir Plate Cover (10-15 Ton Models)

This is a replacement cover for our 10-15 Ton Model Swing Arm Machines. It's bolted to the rear of the machine in order to restrict access to the oil reservoir.

Specifications:

  • Plate dimensions: 9.4" x 9"
  • Plate Material: Plastic
  • Bolt Holes: .54"
  • Bolt Pattern (see drawing):
    • 3.75" center-to-center (Top 3-bolt side)
    • 2.3" center-to-center (4-bolt side)
    • 3.5" center-to-center (Side 3-bolt side)
