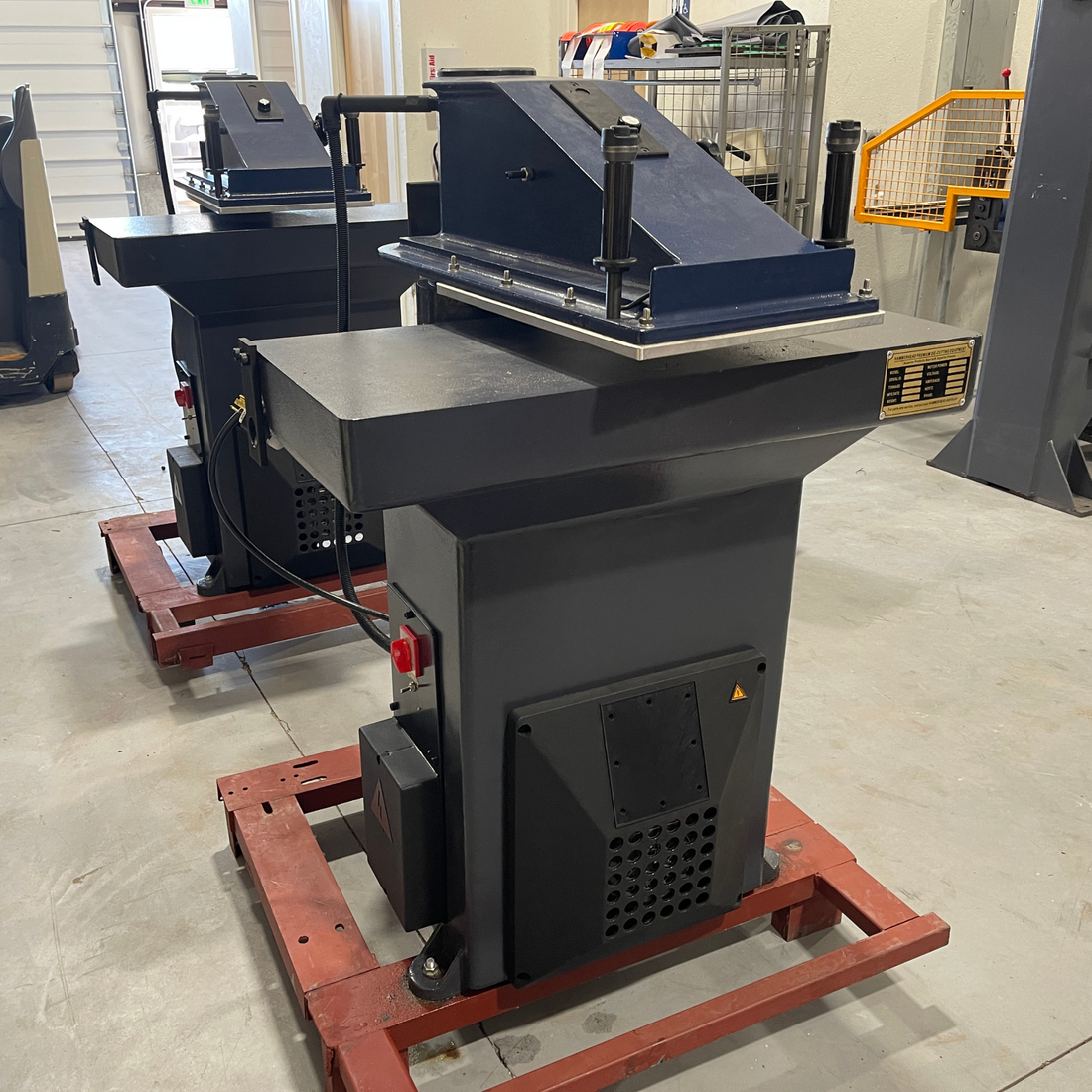

USED IN-STOCK: GEN 2 HAMMERHEAD 20 TON SWING ARM CLICKER PRESS

*Used machines are fully functional but may have been operated for more than 20 hours, or may have sustained some cosmetic damage or other minor damage that prevented the machine from being fully returned to "like-new" condition (examples include; extensive patching on the machine body, repaired leaks or reseated seals, components logging over 20 hours in use, or a non repairable portion of the cast body being broken).

This machine has had a micro-fracture in the cast body repaired with a siliconized liquid sealant as a result of a small leak. All machine actions are functional.

Model # HH-SA-20-B
Machine Dimensions (W:D) 37.25" x 34.5"
Shipping Dimensions (W:D:H) 43” x 43” x 65”
Head Size (W:D) 14.5” x 19”
Table Size (W:D) 35.5” x 16.25”
Max Die Dimensions 14.5” x 17”
Gross Crated Weight 2000 LBS
Tonnage 20
Daylight 5"
Stroke Adjustment 1.5"-5"
Stroke Speed 3.94 in/s
Oil Capacity ~10 gallons

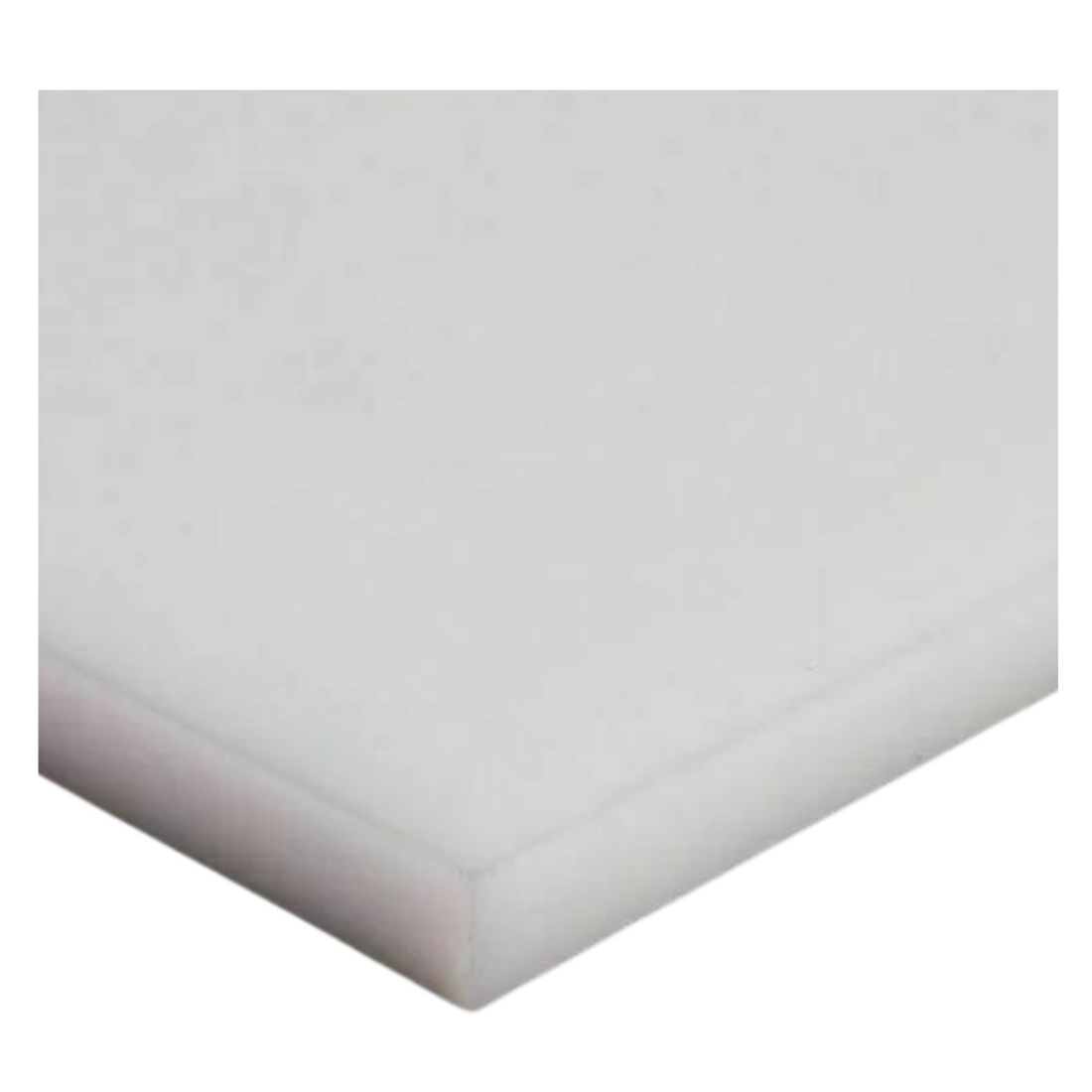

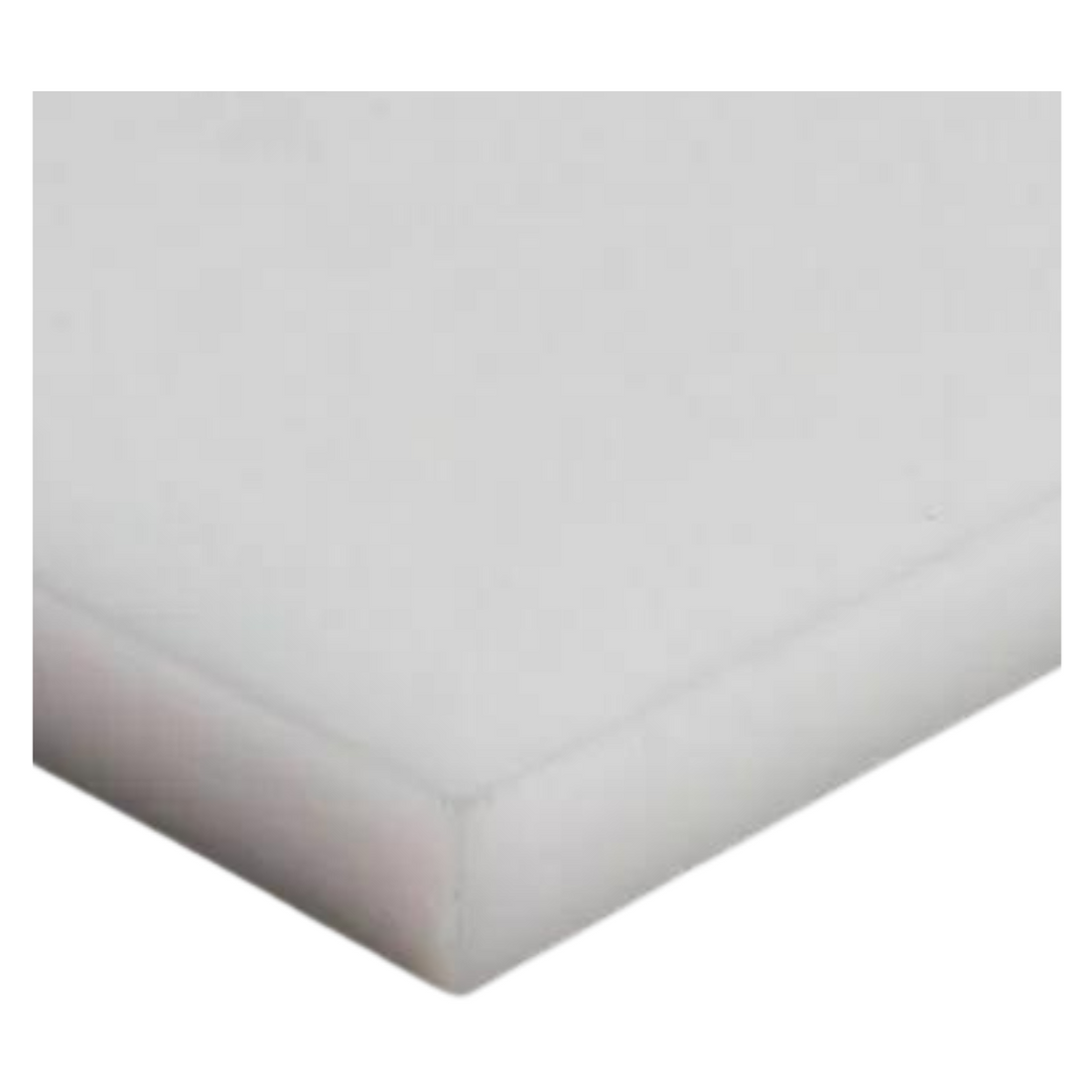

Cutting Pad 1” Thick Polypropylene
Machine Power: 3 Phase, 220V, 60HZ

Amperage 7A
Motor Power: 1.1KW (1.5 HP)

Warranty: 180 Full Coverage*

*Photos in listing are for representation purposes only and may not be the actual unit described in the listing.
